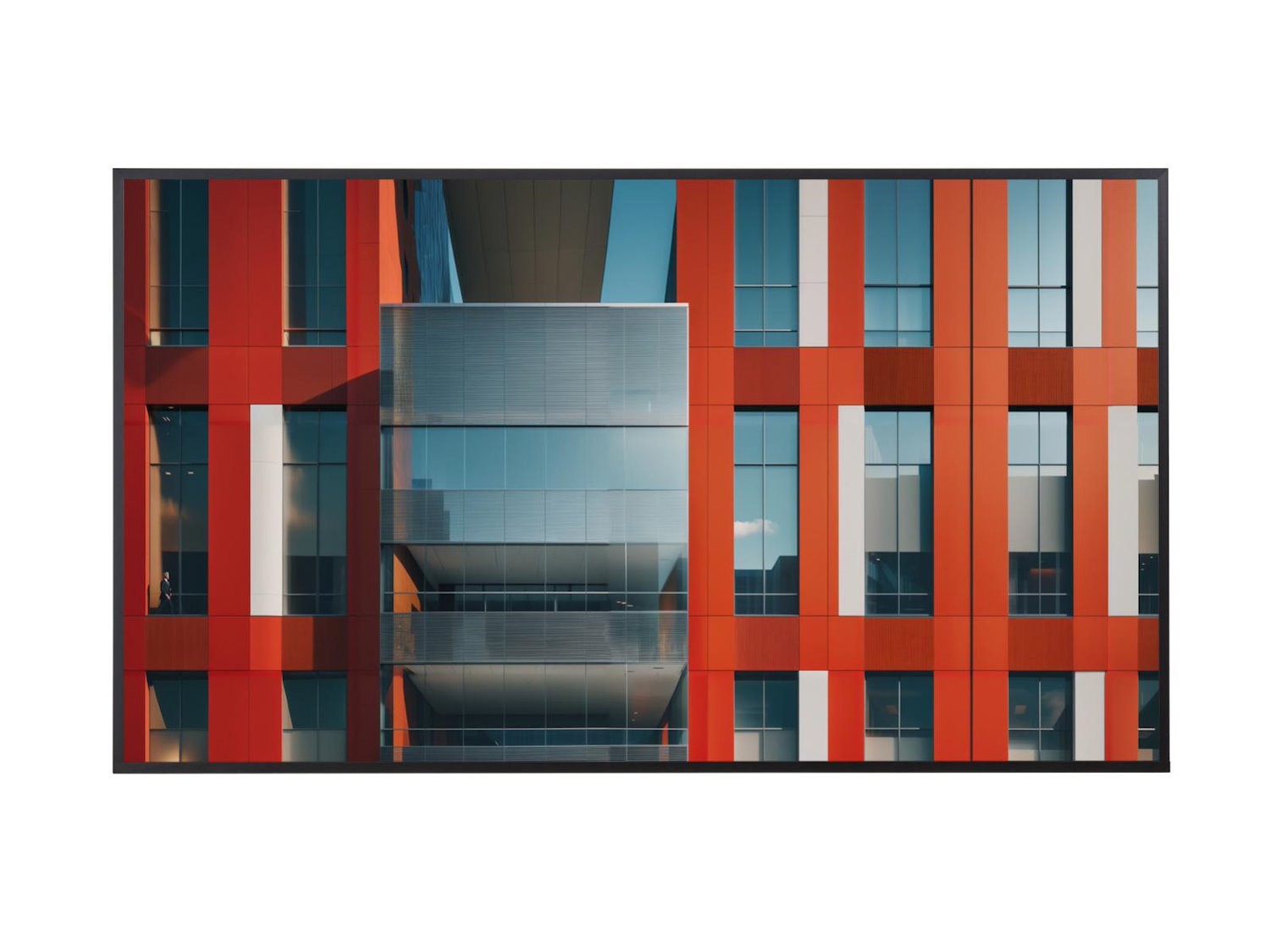

Sharp ME652 65" is for Class-leading performance and value! Second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings. An integrated System on Chip (SoC) Powered by Android 13, CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners.
Features
- Seamless connectivity with a single cable connection between notebook and display. The native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity.
- Powerful System-on-Chip Design to fit your digital signage needs.
- Best readability even in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol.
- 450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation.
- Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage.
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails.
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations.
Specifications
General Information
- Panel Technology: ADS with Direct LED backlights
- Screen Size: 65 inch
- Max. Brightness (average): 450 cd/m2
- Contrast Ratio: 8000:1
- Viewing Angle (H/V): 178
- Haze Level (%): 25
- Supported Orientation: Landscape, Portrait
- Dimensions (W x D x H): 1463.3 x 838.3 x 68.0 millimetre
- Bezel Width: 15.9 (left, right); 15.9 (top, bottom) millimetre
- Weight: 23.9 kilogram
- VESA Mounting 4x M8 x 14mm (600 x 400)
Resolution
- Native Resolution: 3840 x 2160
Synchronisation Rate
- Horizontal Frequency 15 - 135
- Vertical Frequency 23-76
- Aspect Ratio: 16:9
- Supported Resolution: 4096x2160, 3840x2160, 1920x1200, 1920x1080, 1280x720, 640x480,
Connectivity
- Input Video Analogue: N/A
- Input Video Digital: 3 x HDMI, 1 x USB-C (DP-Alt Mode Supported)
- Input Audio Analogue: N/A
- Input Control: LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C
- Input Data: USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 x1 (Downstream for USB-C), USB-C x1 (Upstream)
- Output Audio Digital: 3.5mm Mini Jack, SPDIF Optical
Installation
- Landscape
- Portrait
Sensors
- Ambient Light Sensor: Integrated triggered actions programmable
- Temperature Sensor: Integrated Triggered actions programmable 1 sensor
- Human Sensor: Optional (KT-RC3)
Electrical
- Power Consumption: 140-240
- Power Savings Mode: <0.5W (Normal Standby); 2W (Network Standby)
- Operating Hours: 18/7
Environmental
- Operating Temperature: 0ºC to 50ºC
- Operating Humidity: 20% to 80%
- Storage Temperature: -20ºC to 60ºC
- Storage Humidity: 10% to 80%
Other Features
- Safety and Ergonomics: Energy Star 8.0
- Audio (Speakers): Integrated 10W x 10W, Optional through SP-RM3a
Shipping Content
- AC Power Cord, 2.0m HDMI Cable, IR Remote Control & Batteries
